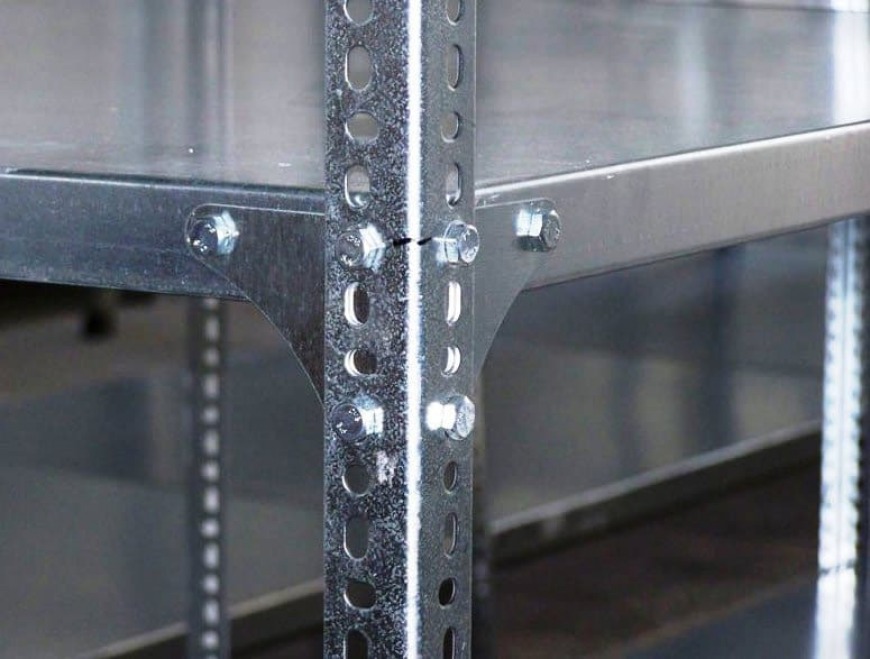

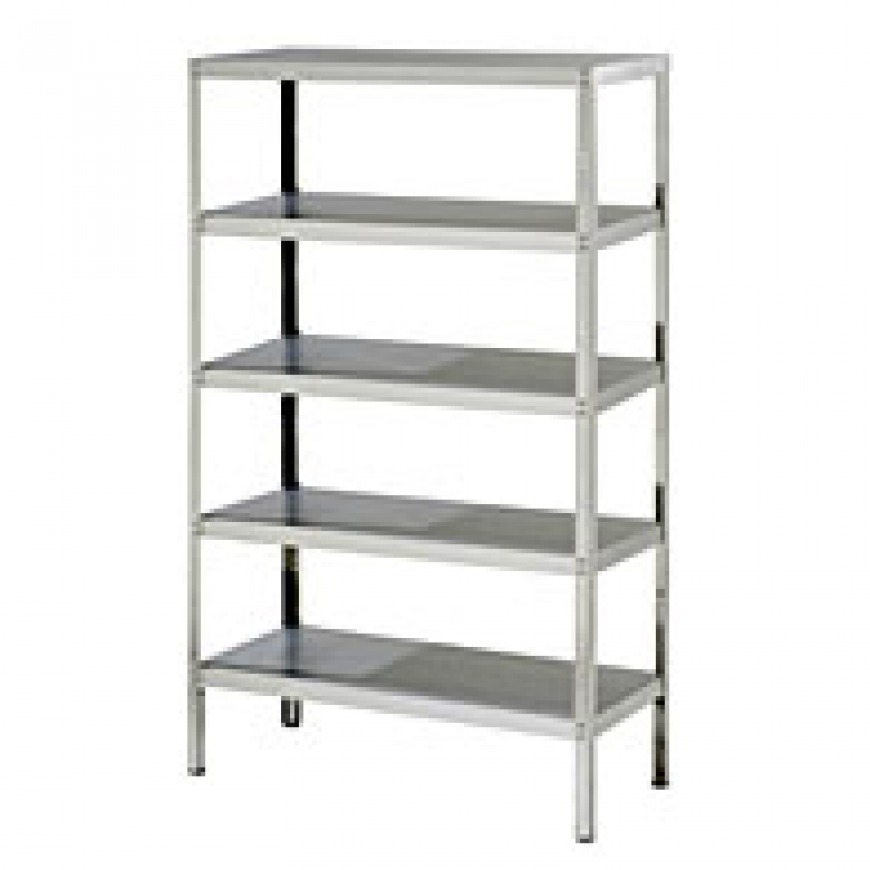

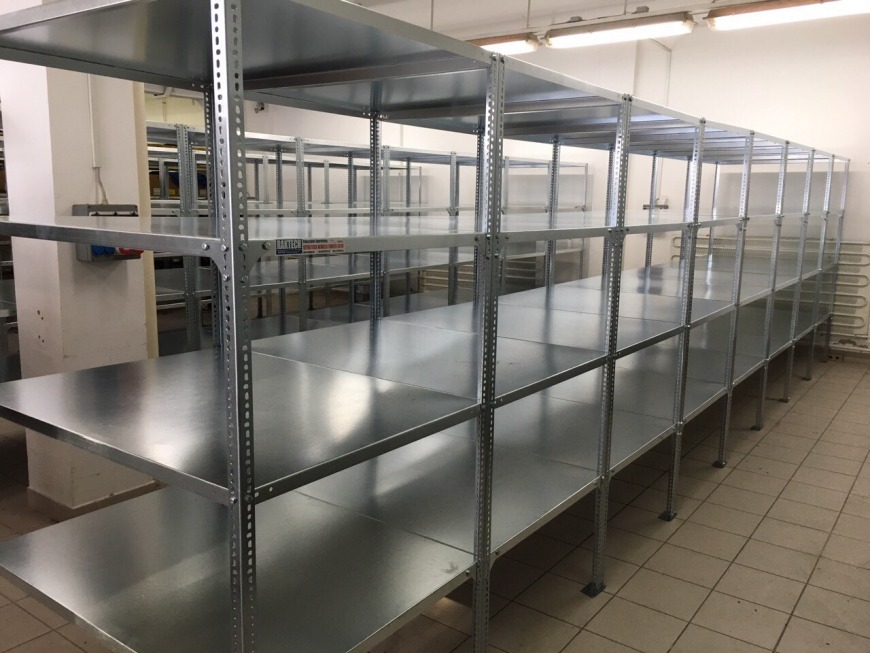

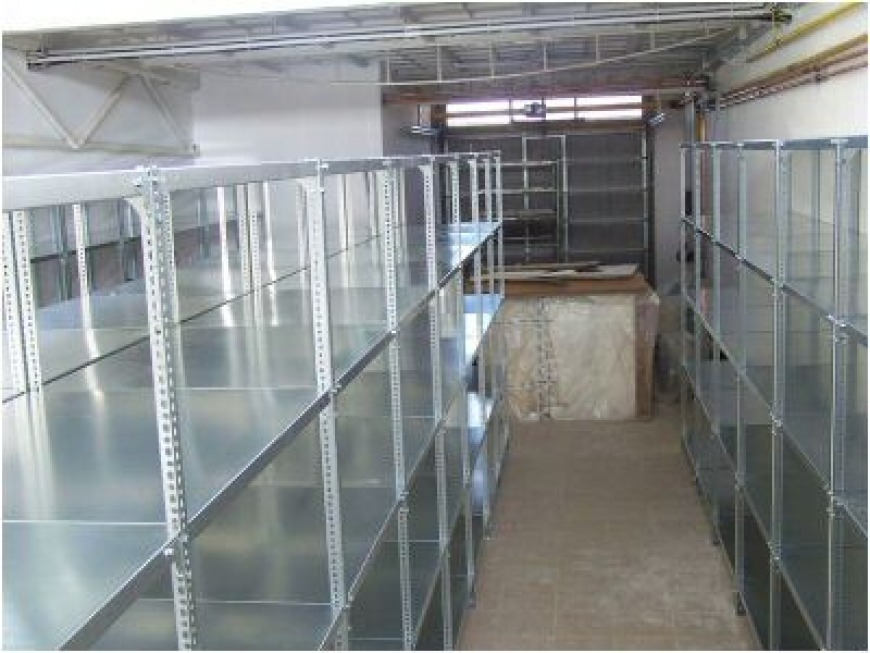

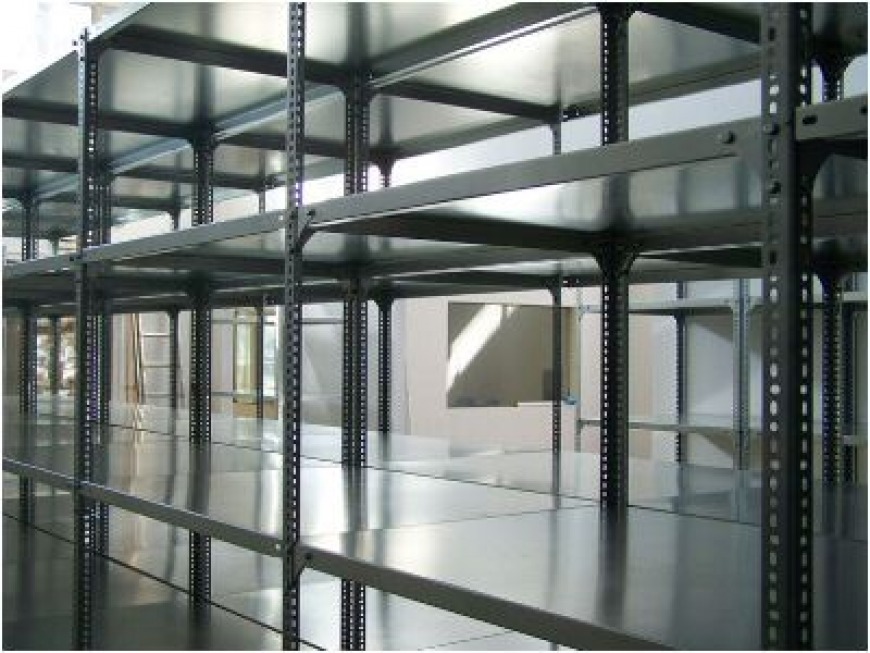

The metal shelf system consists of galvanized profiles, steel shelves, corner plates and screws. Since the metal shelf elements are manufactured in 60 different sizes, they can be easily varied with support profiles of different sizes and load-bearing capacities, and countless structural shapes can be created from them. The created shelf system or rack can be easily disassembled if necessary and screwed together in a different shape. Our products can be easily combined with shelves (metal shelves of other manufactures) and rack systems with similar perforations that are available in the market under other names. They are made in anchored and painted versions. The former is more corrosion-resistant, the latter is more attractive, so our customers decide which solution to choose depending on the area of use. The shelves are also suitable for creating shop fittings. With shelves that can be expanded as desired and adapted to the characteristics of the room, space-saving shop fittings can be created with minimal expertise.
ASK FOR OUR QUOTE
| Profiles | |||
| Article nr. | Dimensions (mm) | Weight (kg/pcs) | |
| FH120/26R | 32×32×1,5×1981 | 1,2 | |
| FH120/32R | 32×32×1,5×2438 | 1,5 | |
| F140/26R | 35×35×1,8×1981 | 1,75 | |
| F140/32R | 35×35×1,8×2438 | 2,2 | |
| F140/40R | 35×35×1,8×3048 | 2,7 | |
| F140/52R | 35×35×1,8×3962 | 3,5 | |
| F160/26R | 40×40×2×1981 | 2,08 | |
| F160/32R | 40×40×2×2438 | 2,56 | |
| F160/40R | 40×40×2×3048 | 3,2 | |
| F160/52R | 40×40×2×3962 | 4,16 | |
| Standard load-bearing shelves | |||
| Article nr. | Dimensions (mm) | Load capacity (kg) | Weight (kg/pcs) |
| FPM 1 | 800×300 | 190 | 2,29 |
| FPM 2 | 800×400 | 180 | 2,84 |
| FPM 3 | 800×500 | 170 | 3,39 |
| FPM 4 | 800×600 | 160 | 3,98 |
| FPM 5 | 800×700 | 160 | 4,48 |
| FPM 6 | 800×800 | 160 | 5,03 |
| FPM 7 | 1000×300 | 180 | 2,82 |
| FPM 8 | 1000×400 | 170 | 3,49 |
| FPM 9 | 1000×500 | 160 | 4,16 |
| FPM 10 | 1000×600 | 160 | 4,84 |
| FPM 11 | 1000×700 | 130 | 5,51 |
| FPM 12 | 1000×800 | 120 | 6,18 |
| FPM 13 | 1200×300 | 170 | 3,35 |
| FPM 14 | 1200×400 | 160 | 4,15 |
| FPM 15 | 1200×500 | 150 | 4,95 |
| FPM 16 | 1200×600 | 140 | 5,75 |
| FPM 17 | 1200×700 | 120 | 6,55 |
| FPM 18 | 1200×800 | 120 | 7,35 |
| Heavy duty shelves | |||
| Article nr. | Dimensions (mm) | Load capacity (kg) | Weight (kg/pcs) |
| FPMN1 | 1000×500 | 210 | 5,42 |
| FPMN2 | 1000×600 | 200 | 6,17 |
| FPMN3 | 1000×700 | 180 | 7,04 |
| FPMN4 | 1000×800 | 170 | 8,03 |
| FPMN5 | 1200×500 | 180 | 6,32 |
| FPMN6 | 1200×600 | 170 | 7,34 |
| FPMN7 | 1200×700 | 160 | 8,42 |
| FPMN8 | 1200×800 | 150 | 9,51 |
| Extra heavy duty shelves | |||
| Article nr. | Dimensions (mm) | Load capacity (kg) | Weight (kg/pcs) |
| FPME1 | 1000×500 | 260 | 6,24 |
| FPME2 | 1000×600 | 250 | 7,26 |
| FPME3 | 1000×700 | 230 | 8,26 |
| FPME4 | 1000×800 | 220 | 9,27 |
| FPME5 | 1200×500 | 220 | 7,42 |
| FPME6 | 1200×600 | 210 | 8,62 |
| FPME7 | 1200×700 | 190 | 9,82 |
| FPME8 | 1200×800 | 180 | 11 |
